Here"s a simplified explanation of PEEK"s advantages in automation equipment:

Why PEEK Rocks in Automation?

PEEK (polyetheretherketone) solves problems regular metals and plastics can"t handle, thanks to these superpowers:

1. Handles Extreme Heat Like a Champ

• Works non-stop at 260°C (300°C short bursts) - way hotter than nylon (max 100°C)

• Stays precise even when hot (HDT=160°C, 315°C when reinforced) - no metal-like expansion errors

•


2. Self-Lubricating & Ultra-Durable

• Slippery surface (friction 0.2-0.3) works without grease - perfect for clean rooms/food machines

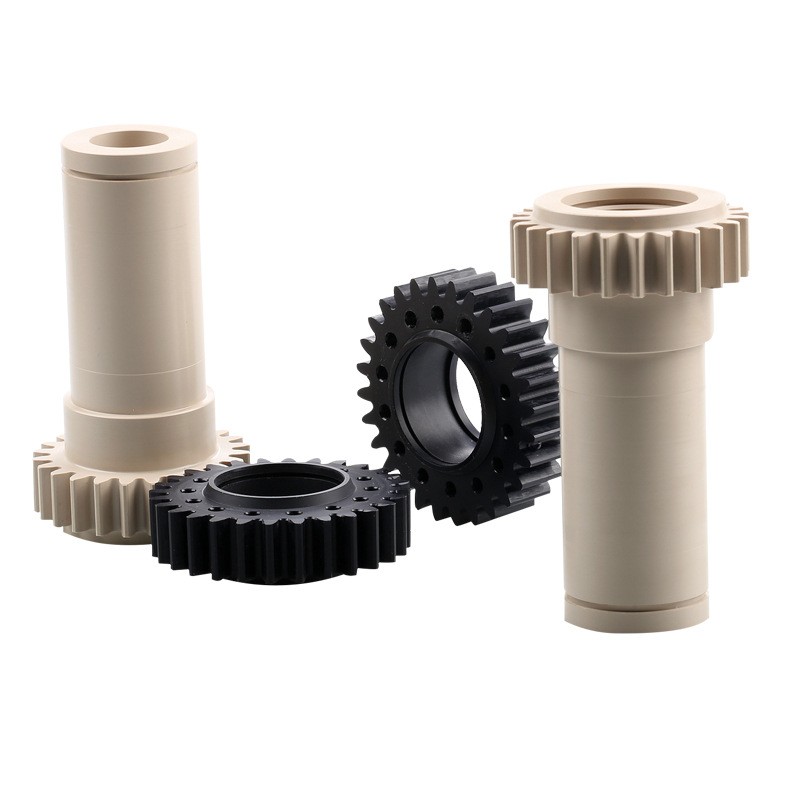

• Lasts 5-10x longer than metal gears, runs quieter too (30% less noise)

•


3. Lightweight But Strong

• Weighs half as much as aluminum (1.3g/cm³) but just as strong - great for robot arms/drones

• Handles constant shaking/vibrations better than metals

•


4. Chemical & Steam Resistant

• Laughs at acids, solvents, and battery chemicals (except strong sulfuric acid)

• Survives steam sterilization - perfect for medical/food equipment

•


5. Smart Electrical Properties

• Top-notch insulation (20kV/mm) for robot cables/high-frequency parts

• Can be made conductive for anti-static needs (using carbon additives)

•


6. Clean & Sterilization-Friendly

• Won"t shed particles - meets strict semiconductor/medical standards

• Handles radiation sterilization (gamma rays/electron beams)

•


7. Cost-Effective Long-Term

• Lasts 5x longer than metals despite higher upfront cost

• Saves energy: lighter parts cut power use (30% lighter = 15% energy saved)

•


The Bottom Line

PEEK is the Swiss Army knife of materials for high-end automation (semiconductors, medical, energy). It combines heat resistance, self-lubrication, and chemical resistance in one package - solving problems where traditional materials fail. While pricey upfront, it pays off through reliability, efficiency, and long service life in tough conditions.
